Carbon, Inc.

EPU 44

Highly resilient, tear resistant, 40% bio-based
Carbon M2 Adidas Midsole.png

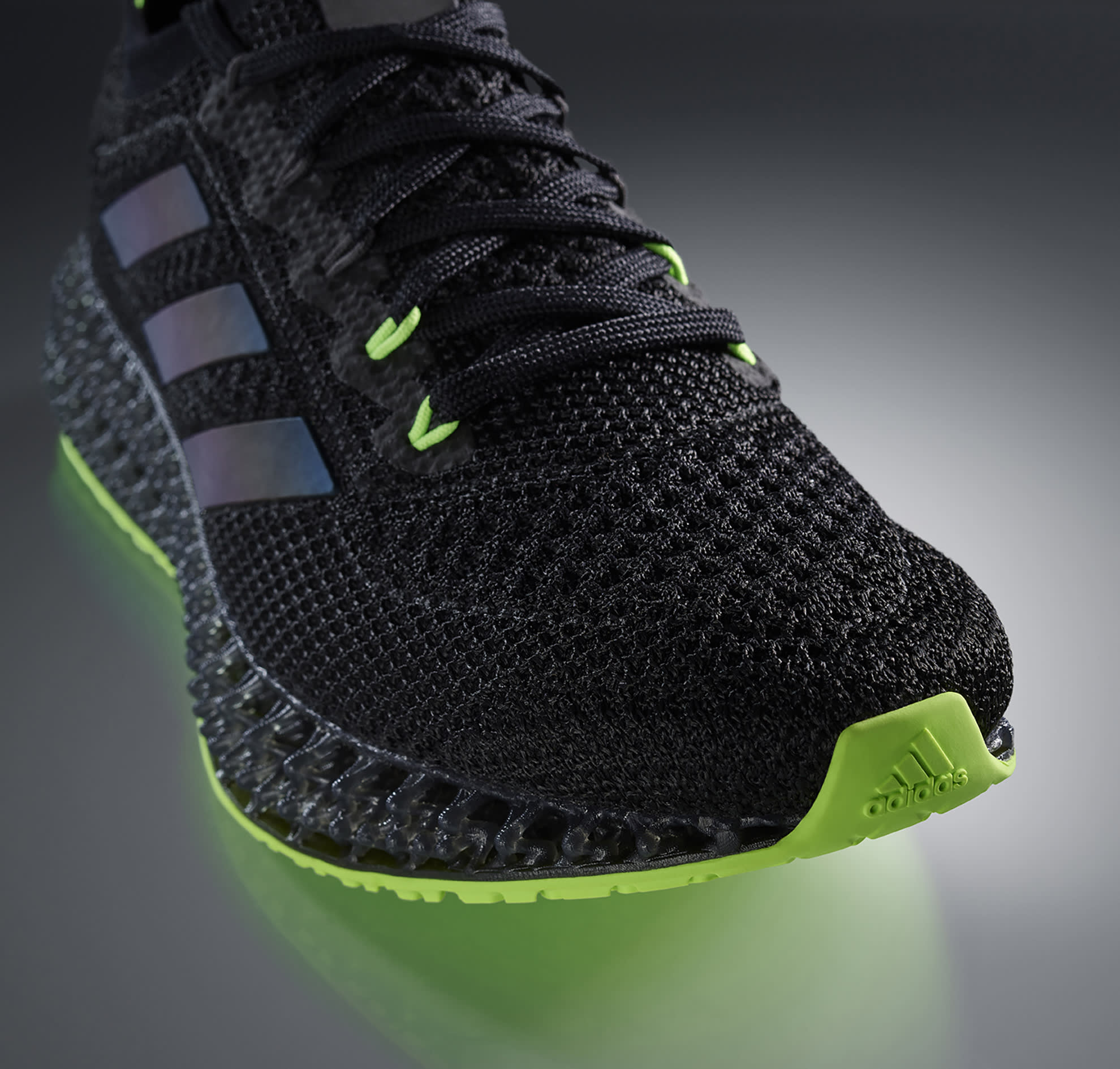

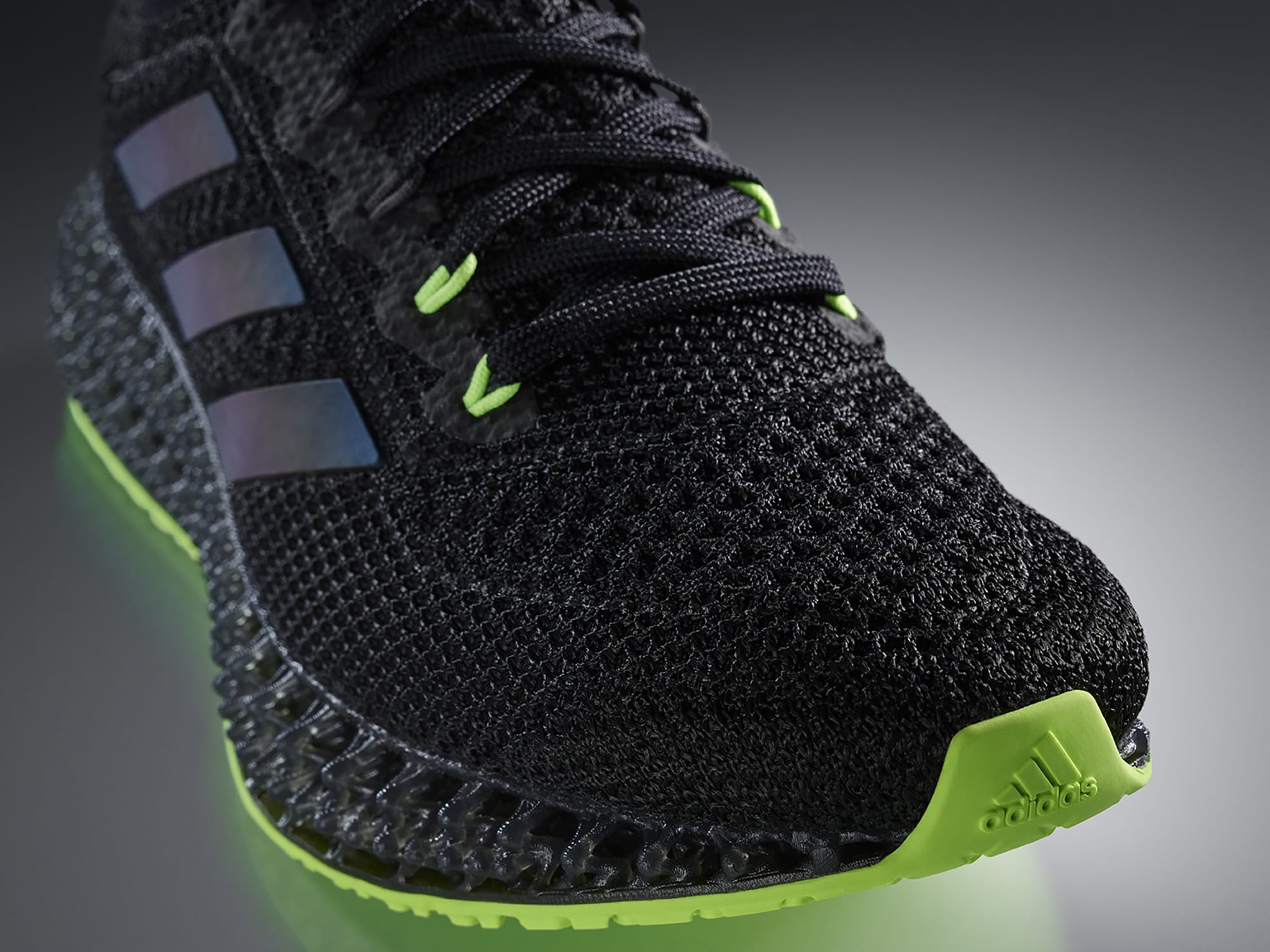

adidas 4DFWD sneaker, in black and neon green, close up on toe

Highly Resilient, Tear Resistant, 40% Bio-Based

EPU 44 is production-scale, resilient elastomer that is highly resilient, tear resistant, and more sustainable due its 40% bio-based formulation. EPU 44 enables lighter lattices than EPU 41 when designed with equivalent stiffness, requiring less material. EPU 44 has a higher green strength as well, allowing for more printable geometries. EPU 44 prints faster than EPU 41, and its higher green strength helps protect yield of delicate designs.

As a production scale offering, EPU 44 is only offered as a General Factory product, requiring industrial-class dispensing, cleaning, and baking equipment. It is comparable to commercial TPUs with a Shore A hardness of 70.

EPU 44

Carbon, Inc.
  • Durometer (Shore A Hardness)

    78
  • Glass Transition Temperature

    -5 °C 23 °F

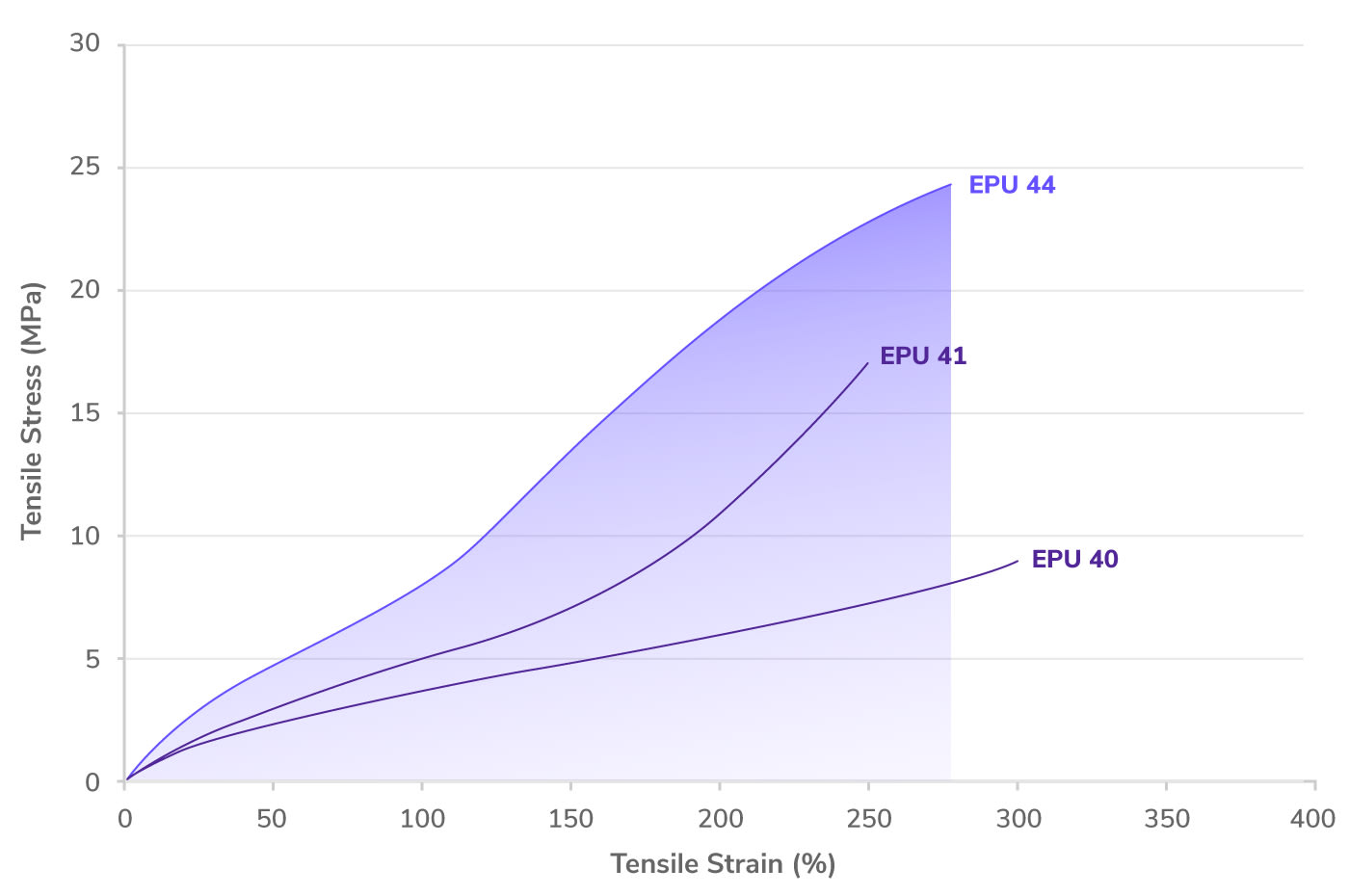

  • Elongation At Break

    275 %
  • Tear Strength

    35 kN/m 199.85 lbf/in

Comparable Thermoplastics

Thermoplastic Polyurethane Elastomers (TPU)

More Possible Parts

EPU 44 has a high green strength, allowing for more printable geometries than softer resins.

Cold Temperature Performance

EPU 44 retains its elastomeric properties to -5 °C temperatures.

Biocompatibility

EPU 44 has passed requirements for biocompatibility according to ISO 10993-10.

Example Applications

Cushioning with Elastomeric Polyurethane

Cushioning with Elastomeric Polyurethane

Bouncy elastomeric lattices maximize comfort with precision tuning of energy return. EPU 44 offers new ways to optimize these parts. EPU 44 enables lighter lattices than EPU 41 when designed with equivalent stiffness, requiring less material. EPU 44 has a higher green strength as well, allowing for more printable geometries.

These applications combine a need for sustainability, high resilience, tear resistance, and energy return, in addition to isotropy, great surface finish, and accuracy.

3D Printed Parts in Production

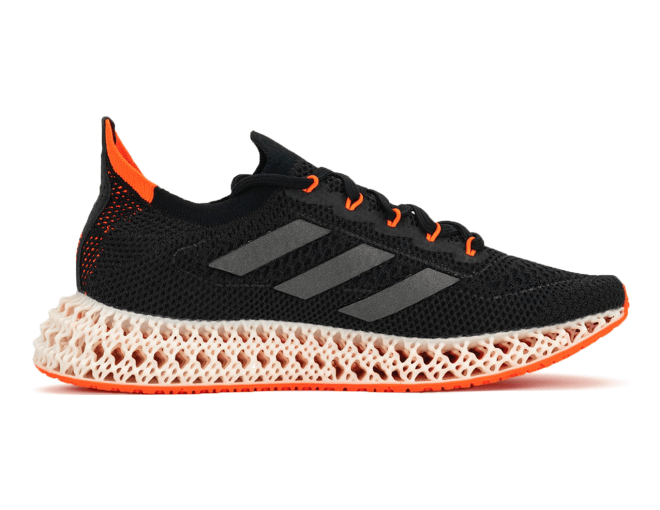

adidas 4DFWD sneakers

adidas 4D Midsole

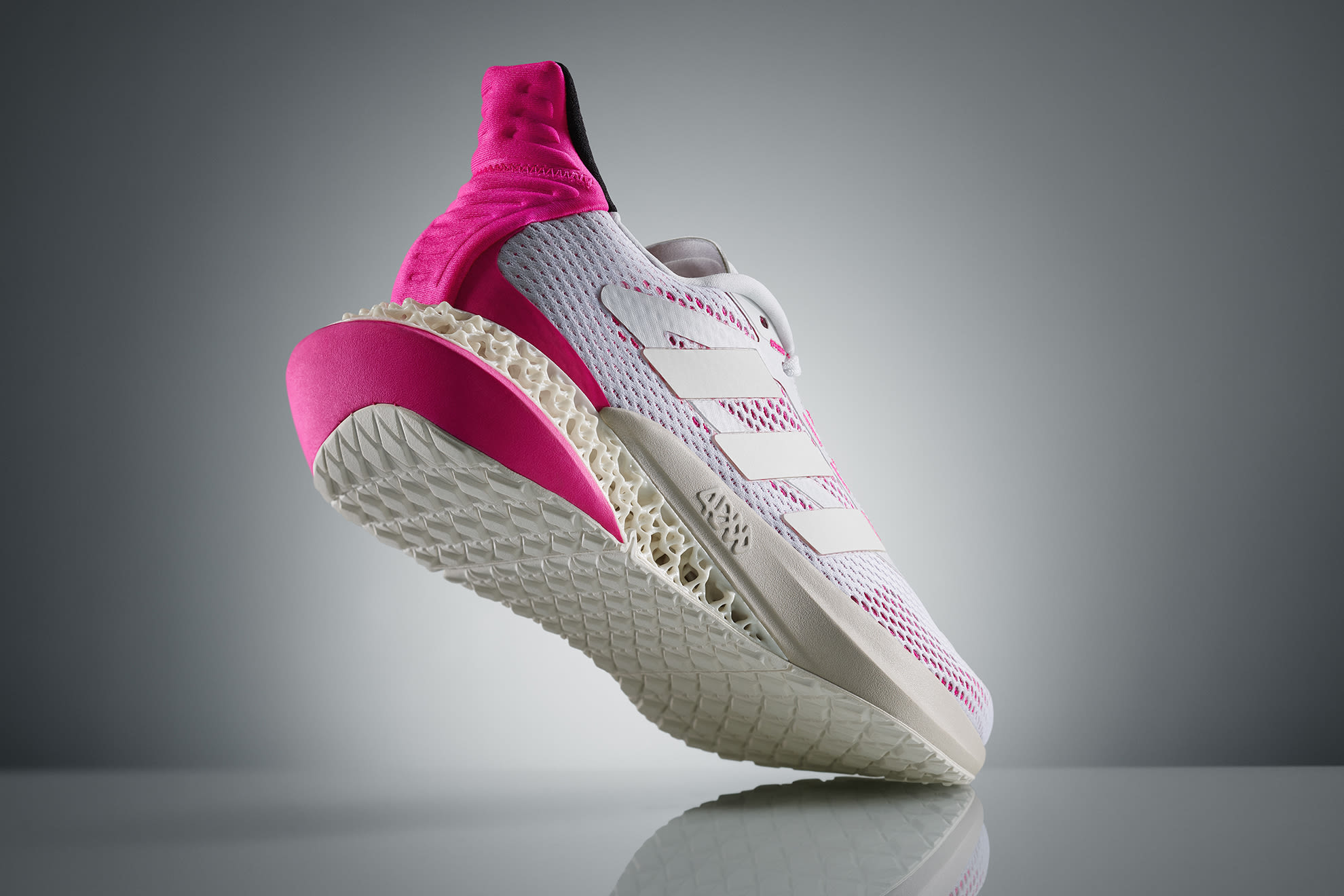

adidas’ next-gen 4DFWD midsole uses an elastomeric lattice, made with EPU 44. The 4DFWD uses Carbon’s latest high-performance resin optimized for forward motion and a smoother transition delivering a unique running experience.

Radically Better Products Powered by Carbon

The combination of premium soft materials, computational design, and print technology enables brands to design, develop, and manufacture data-driven, high-performance products that offer elite comfort, protection, durability, customization, and breathability to consumers.
