High-Temperature Resistance and Stiffness in a One-Part Resin
Loctite IND147 Black, certified for Carbon printers, is a photopolymer resin with high stiffness and high temperature resistance. IND147 is a one-part resin, which means it’s easy-to-use with simple processing saving time and labor. It’s a quick and easy material to print molds, fixtures, and manufacturing tools with smooth surface and accurate dimensions used under high heat applications in industry, consumer, and automotive markets.
LOCTITE® IND147 Black
Henkel
-
Ultimate Tensile Strength
67 MPa 10 ksi -
Heat Deflection Temperature
291 °C 555.8 °F -
Elongation At Break
2.4 % -
Impact Strength (Notched)
14.6 J/m 0.27 ft-lb/in -
Tensile Modulus
3190 MPa 463 ksi
HIGH TEMPERATURE
IND147 has a HDT of *291°C making it ideal for molds, jigs, and high-temperature prototyping. (* value dependent on workflow)
STIFFNESS
With a tensile modulus of 3190 MPa and ultimate tensile strength of 67 MPa, this is an extremely stiff one-part resin.
QUALITY
IND147 has been validated to work on the Carbon platform with exceptional surface quality, accuracy, and repeatability.
Example Applications
These applications combine the need for high-temperature deflection and stiffness in a speedy, and simple one-part resin.

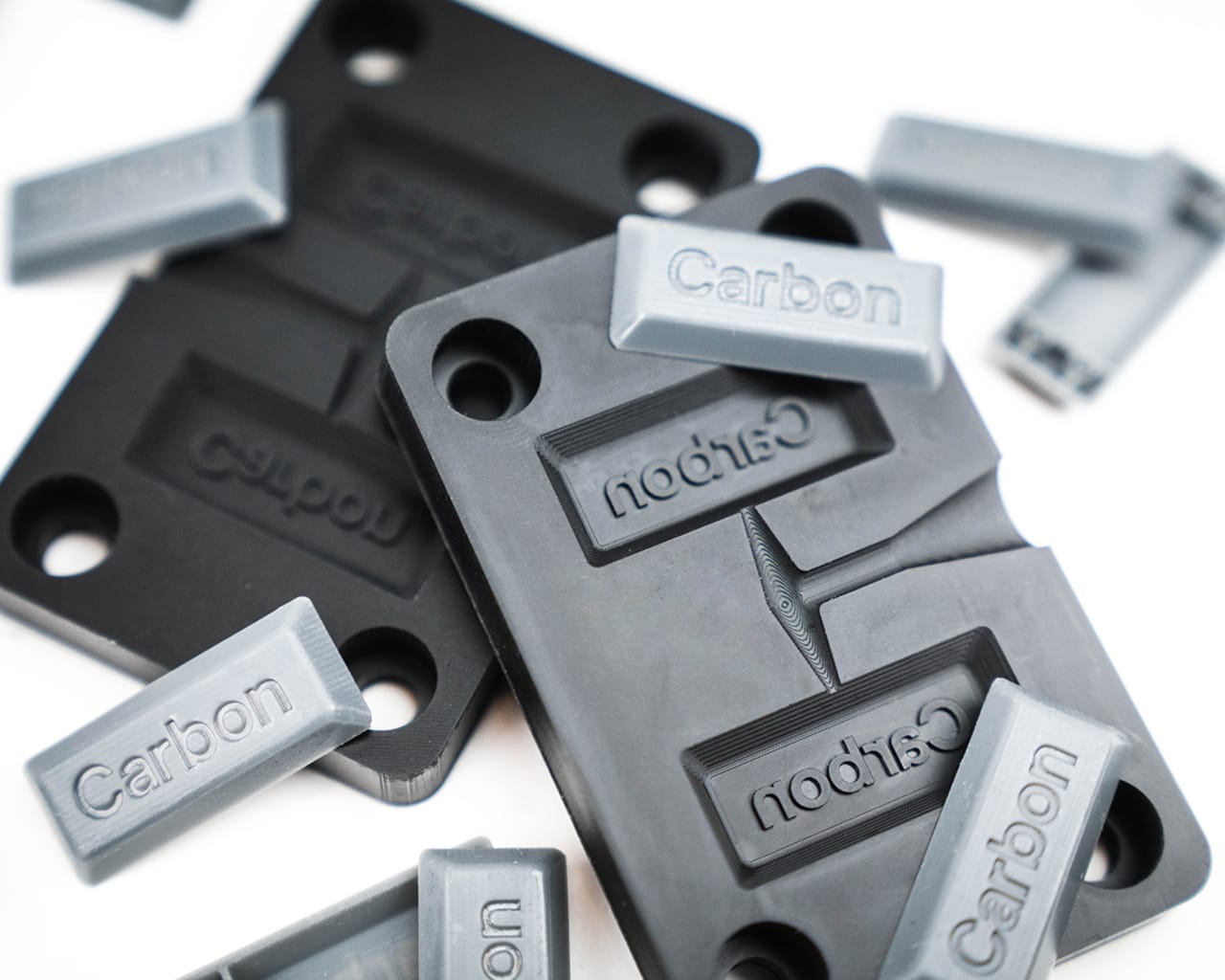

MOLDS
IND147 is ideal for high-temperature, low-pressure molds for polyurethane and silicone like this one.
BAKING FIXTURES
IND147 can be used high-temperature baking fixtures like this one to keep a part in a certain position during a bake.
