Energy-Damping, Strain-Rate-Sensitive Elastomer
EPU 45 is a strain-rate-sensitive material that stiffens to absorb energy at high impact rates. This enables the design of highly breathable lattice geometries tuned for comfort at low-impact speeds and energy absorption at high-impact speeds. EPU 45 has the highest green strength of Carbon’s elastomers, allowing the widest range of part shapes and lattice geometries to be printed at a high yield.
EPU 45 is available in 5L, 19L, 180L, and 1000L packaging.
EPU 45
Carbon Inc.
-
Durometer (Shore A Hardness)
77 -
Glass Transition Temperature
30 °C 86 °F -

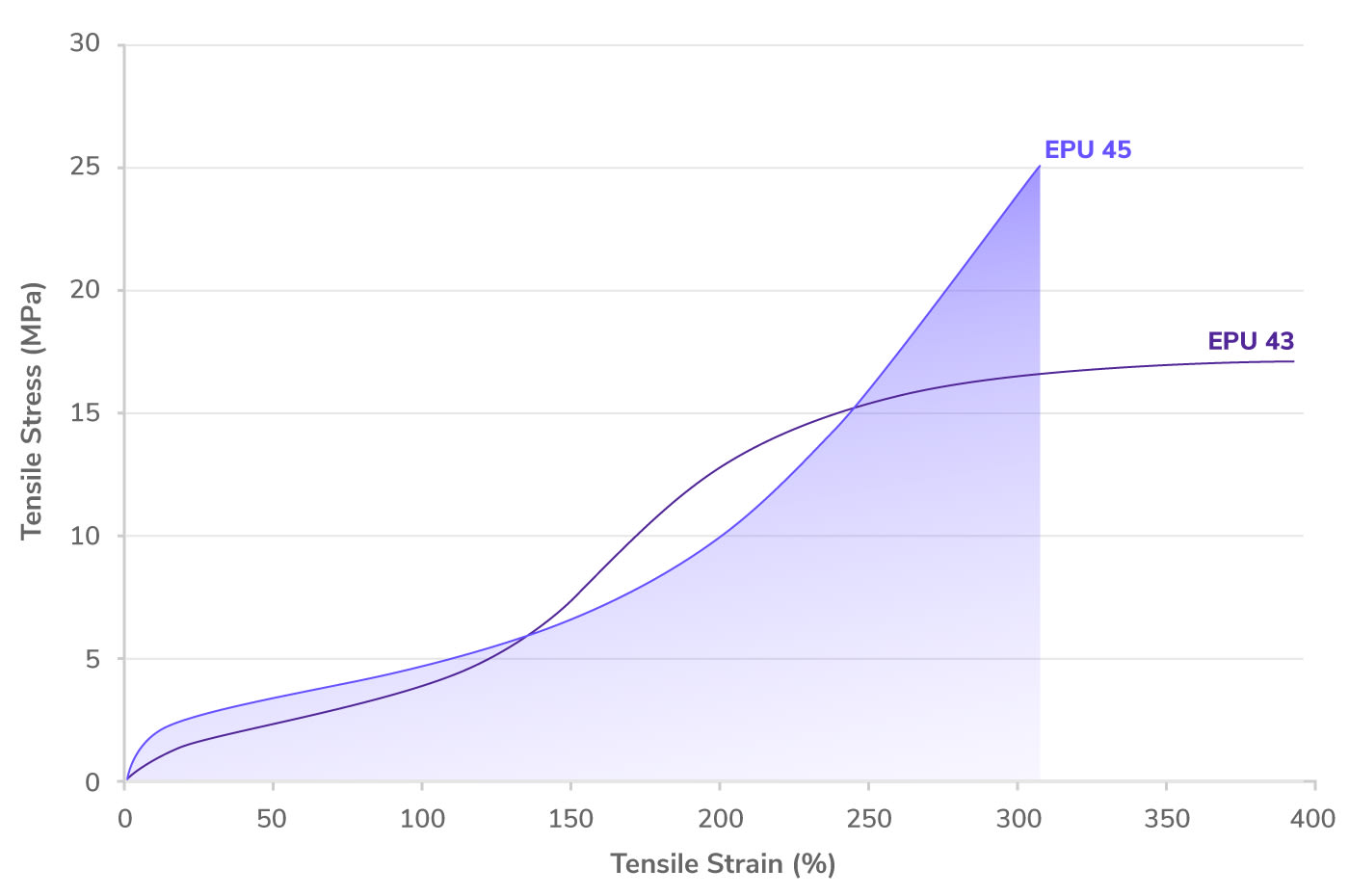

Elongation At Break
290 % -
Tear Strength
28 kN/m 159.88 lbf/in - Technical Datasheet
Energy-damping
EPU 45 offers excellent energy absorption.
Excellent Durability
EPU 45 has the toughness and recovery needed to survive repeated, high-energy impacts in a variety of uses and environments.
Strain-rate Sensitive
EPU 45 will stiffen up more with high impact than with low impacts, which means less material is needed overall.
Example Application

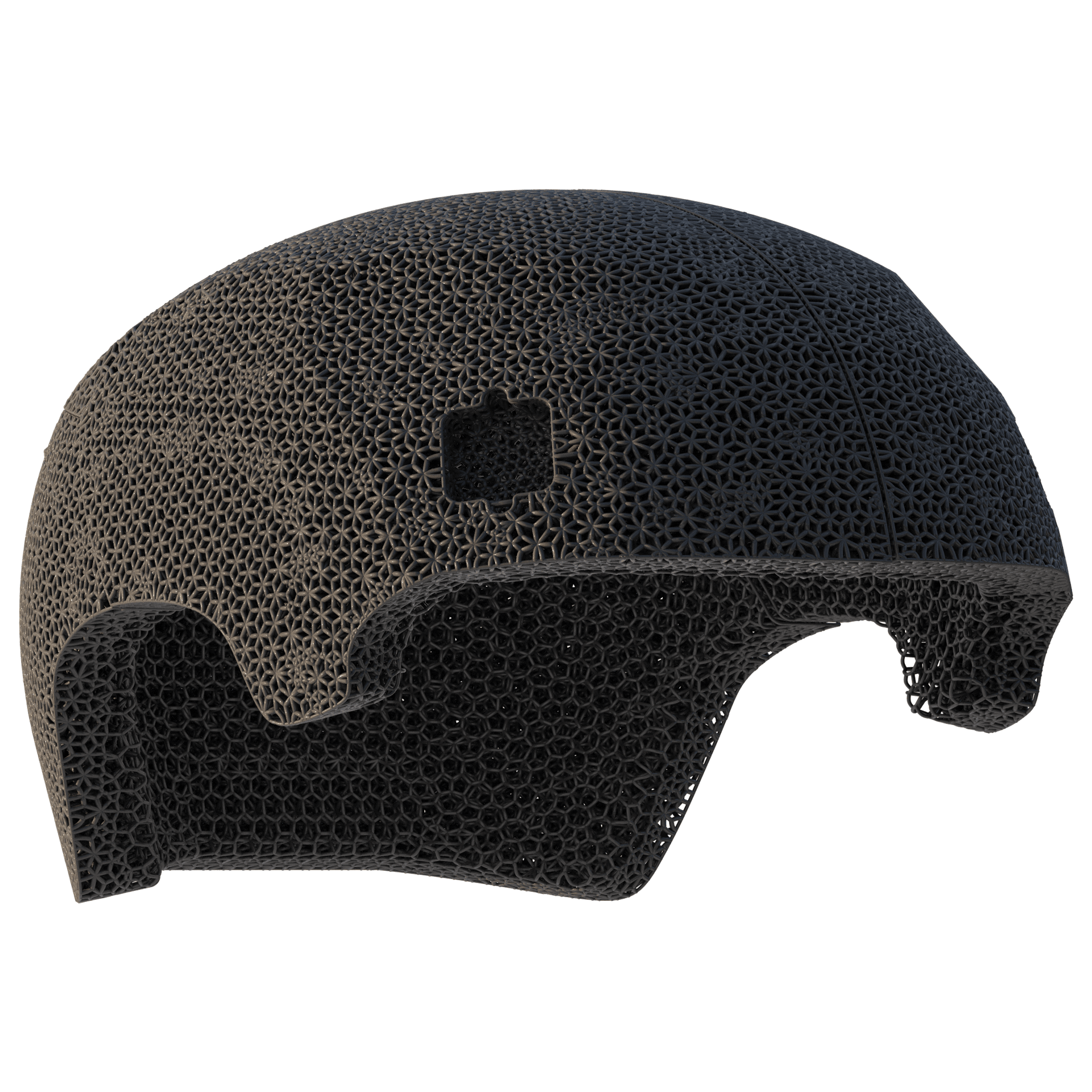

Ballistics Helmet Liner Developed in Partnership with Rice University
EPU 45 offers the highest performance for dynamic impact absorption and strain rate sensitivity making it the ideal material to use for impact helmets. Helmets that use foam as a liner will not get equivalent energy damping and will compress over time. EPU 45 is also a more economical option than other impact-absorbing elastomers because of the speed and accuracy at which it can print.
Replacing Foam with EPU 45
EPU 45 out-performs commercial foam when compared in impact tests. Commercial foam shows higher levels of peak g’s resulting in a much sharper impact. EPU 45 on the other hand demonstrates much lower peak g’s resulting in more energy dissipation over a longer period of time. The data from these tests prove EPU 45’s damping capabilities making this material a great alternative to traditional foam applications
