Carbon, Inc.

UMA 90

Simple, colorful, and quick to print

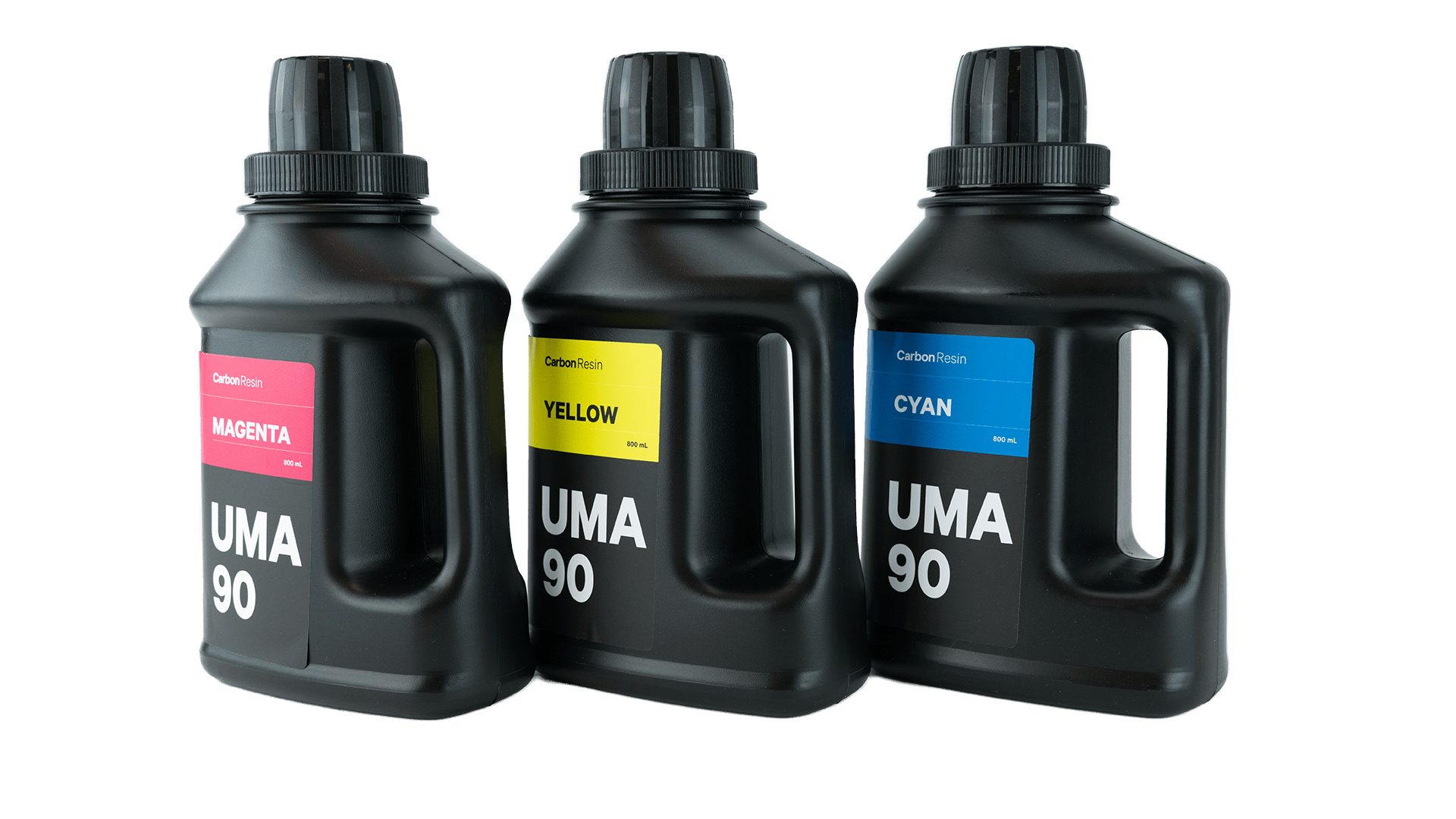

UMA 90 Colored Bottles

Simple, colorful, and quick to print

UMA 90 is a one-part rigid resin similar to conventional SLA resins. It is available in white, black, grey, cyan, yellow, and magenta colors that may be mixed freely to your specification before printing.

As a one-part resin, UMA 90 it can be printed quickly and cheaply to prove out designs or to make production parts for applications with less-demanding requirements. It is well suited for producing manufacturing jigs, fixtures, and general purpose prototypes.

UMA 90

Carbon, Inc.

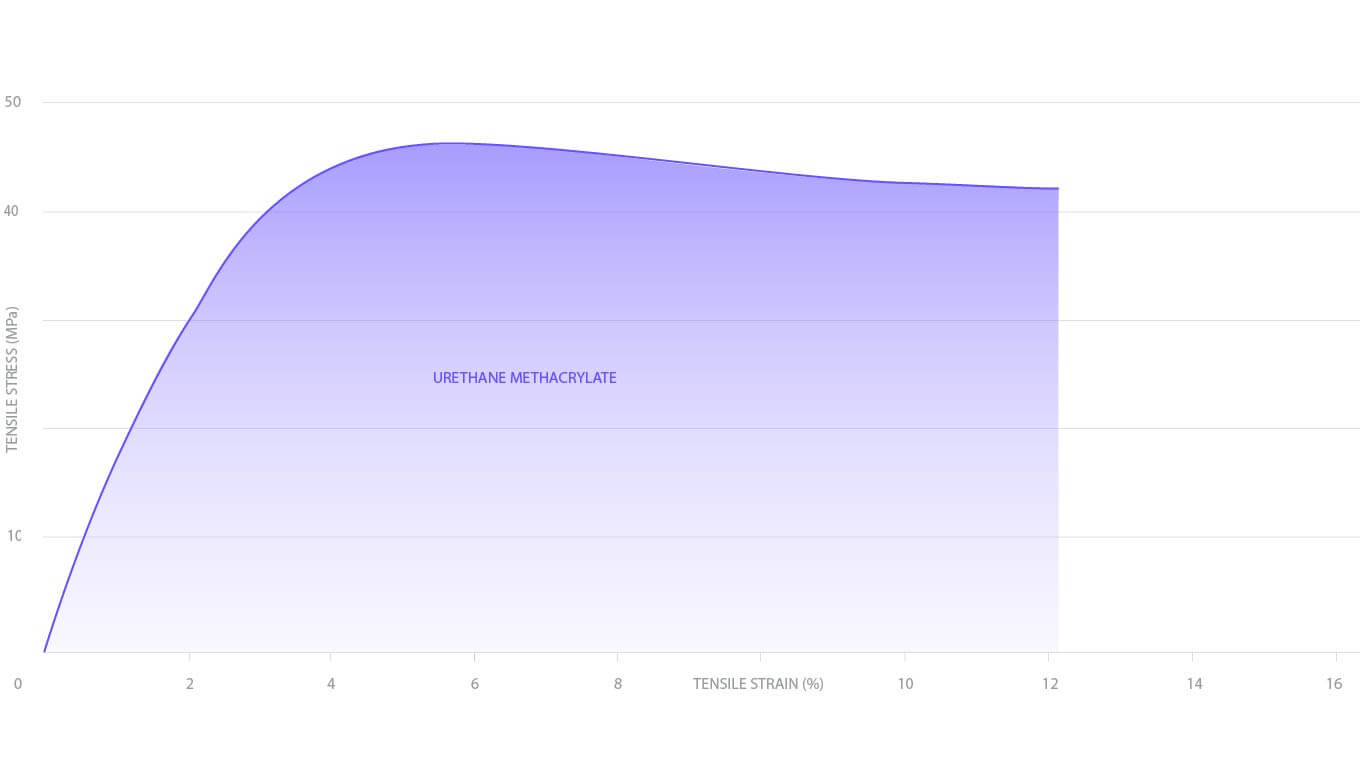

  • Ultimate Tensile Strength

    30 MPa 4 ksi
  • Heat Deflection Temperature

    45 °C 113 °F
  • Elongation At Break

    30 %
  • Impact Strength (Notched)

    30 J/m 0.56 ft-lb/in
  • Tensile Modulus

    1400 MPa 203 ksi

Example Applications

These applications combine a need for simple, quick printing and basic mechanical strength.

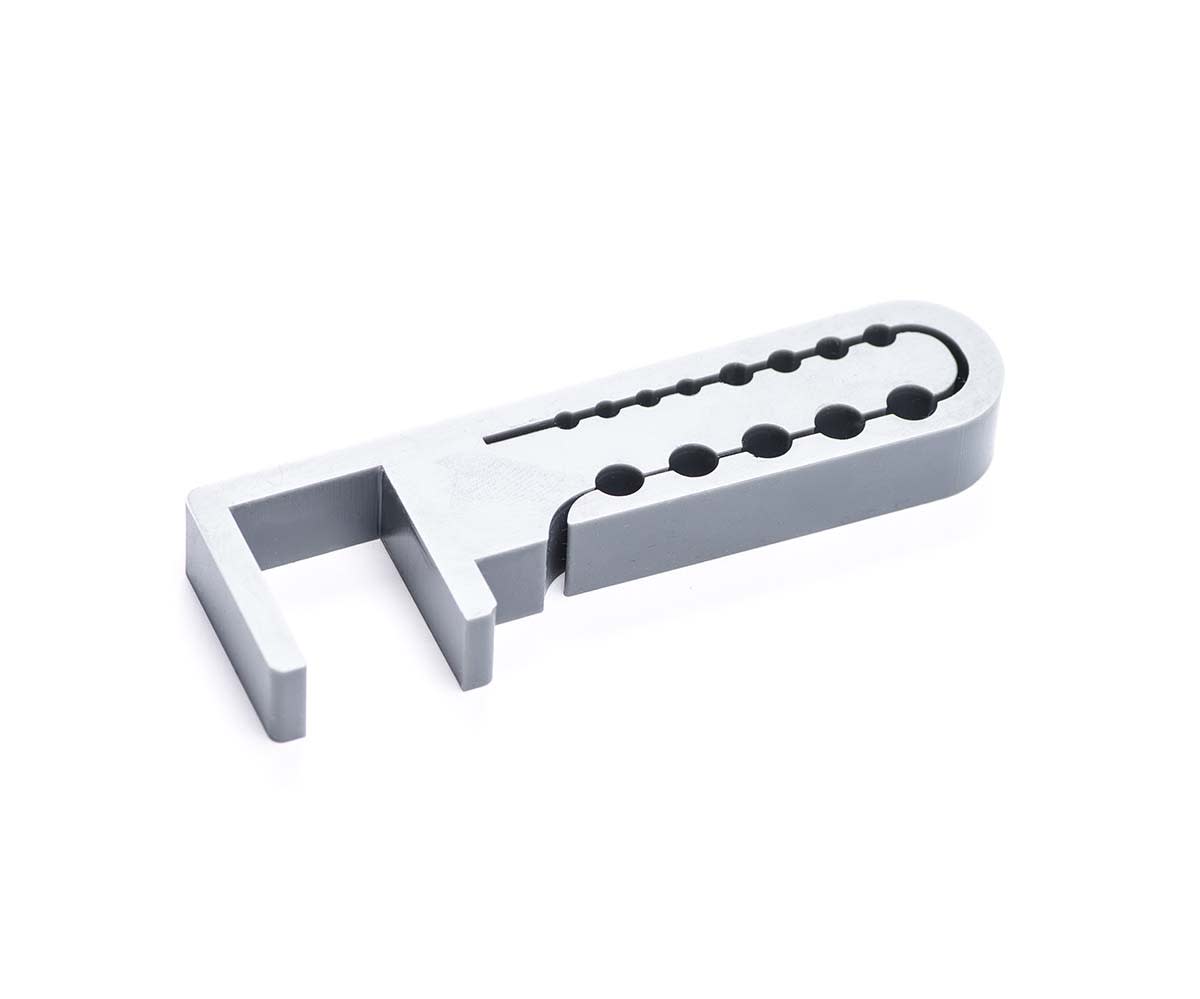

CABLE CLIP

CABLE CLIP

This cable clip is a fit prototype, requiring speed and simplicity to evaluate the design prior to functional prototyping.

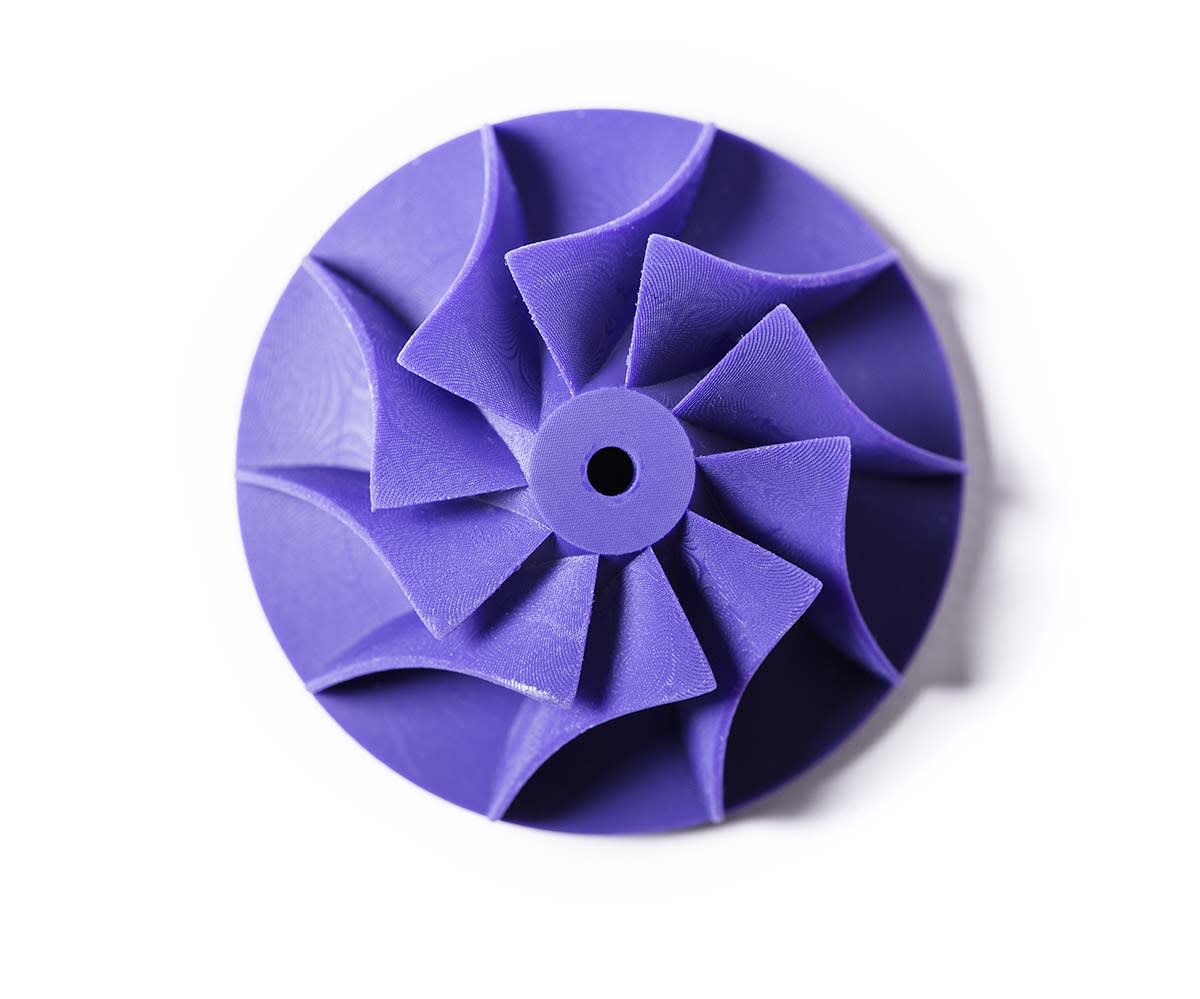

IMPELLER

IMPELLER

This impeller is a form prototype, requiring speed and simplicity to evaluate the design prior to functional prototyping.
