Carbon, Inc.

CE 221

High temperature resistance, stiff, and proven chemical resistance

Excellent strength, stiffness, and temperature resistance

With excellent heat deflection temperature, strength, and stiffness, CE 221 is perfect for applications that need long term thermal stability, especially for fluid routing. CE 221 is comparable to glass-filled nylon.

CE 221

Carbon, Inc.
  • Ultimate Tensile Strength

    85 MPa 12 ksi
  • Heat Deflection Temperature

    230 °C 446 °F
  • Elongation At Break

    3 %
  • Impact Strength (Notched)

    15 J/m 0.28 ft-lb/in
  • Tensile Modulus

    3900 MPa 566 ksi
  • Technical Datasheet

Comparable Thermoplastics

High-Performance (PEEK, PEI, PSU, PSSU)

BIOCOMPATIBLE

Carbon has performed biocompatibility testing with documentation to support the material passing ISO 10993-5 for cytotoxicity.

UV AGING RESISTANT

CE 221 exhibits very low natural polymer aging in the presence of UV over hundreds of hours.

CHEMICAL RESISTANCE

CE 221 exhibits very low mass gain with most household chemicals, industrial fluids, and strong acid, alcohols, and bases.

Example Applications

These applications combine a need for strength, stiffness, and high temperature resistance, in addition to isotropy, great surface finish, and accuracy.

FLUID MANIFOLDS

FLUID MANIFOLDS

Fluid and gas manifolds require strength, stiffness, temperature resistance, in addition to isotropy, smooth finish, and ability to print fine features.

COMPRESSOR SCREWS

COMPRESSOR SCREWS

Compressor screws require strength, stiffness, and temperature resistance, in addition to isotropy, smooth finish, and ability to print fine features.

3D Printed Parts in Production

NASA SEEKER ROBOT THRUSTER NOZZLE

NASA SEEKER ROBOT THRUSTER NOZZLE

A cold-gas thruster for NASA’s robotic free flier inspector, made with CE 221.

NASA Seeker Robot x The Technology House, Powered By Carbon

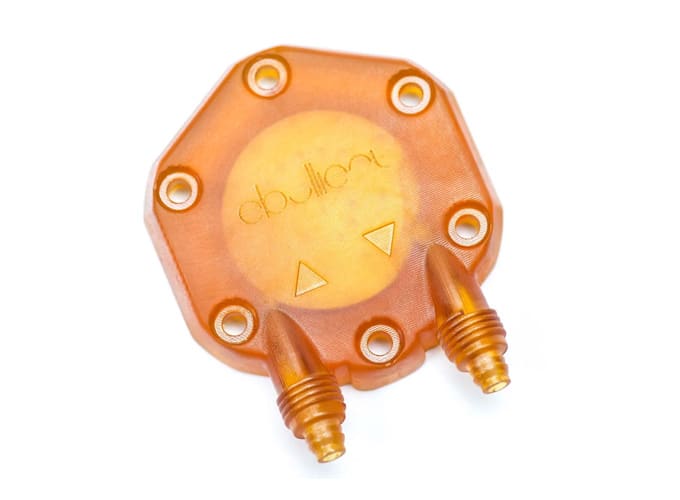

EBULLIENT COOLING MODULE

EBULLIENT COOLING MODULE

A waterless, direct-to-chip cooling module, made with CE 221

Ebullient changes the game with revolutionary “waterless” liquid cooling technology
