What is Carbon Digital Light Synthesis?

Carbon Digital Light Synthesis (Carbon DLS) is a breakthrough resin-based 3D printing process that uses digital light projection, oxygen-permeable optics, and engineering-grade materials to produce polymeric parts with exceptional mechanical properties, resolution, and surface finish. The Carbon DLS process allows engineers and designers to iterate faster and radically reimagine their products by making possible consolidated parts, unmoldable geometries, and software-tunable lattices.

The Carbon DLS™ Process

Digital Light Projection: UV Light Shapes the Part

The Digital Light Synthesis process is driven by Carbon’s groundbreaking Continuous Liquid Interface Production™, or CLIP™. CLIP is a photochemical process that cures liquid plastic resin into solid parts using ultraviolet light. It works by projecting light through an oxygen-permeable window into a reservoir of UV-curable resin. As a sequence of UV images is projected, the part solidifies and the build platform rises.

A: Build Platform, B: Resin, C: Oxygen Permeable Window,
D: Dead Zone, E: Light Engine

Oxygen-Permeable Optics: Fast Printing via the “Dead Zone”

The heart of the CLIP process is the “dead zone”—a thin, liquid interface of uncured resin between the window and the printing part. Light passes through the dead zone, curing the resin above it to form a solid part without curing the part onto the window. Resin flows beneath the curing part as the print progresses, maintaining the “continuous liquid interface” that powers CLIP and avoiding the slow and forceful peeling process that is inherent to many other resin-based printers.

Dual-Cure Materials: Mechanical Properties Set by Heat

Traditional resin-based 3D printing processes produce weak, brittle parts. Carbon overcomes this by embedding a second heat-activated programmable chemistry in our materials. Once a part is printed on a Carbon printer, it’s baked in an oven. Heat sets off a secondary chemical reaction that causes the materials to adapt and strengthen, taking on exceptionally strong characteristics. This produces high-resolution parts with engineering-grade mechanical properties.

Left: Green Young's Modulus (250 - 280 MPa)
Right: Cured Young's Modulus (3800 - 4000 MPa)

The Results? Isotropic Parts with Exceptional Surface Finish

3D printed parts are notoriously inconsistent. Because of a layer-by-layer process, conventional 3D printed materials often exhibit variable strength and mechanical properties depending on the direction in which they were printed.

The Carbon DLS™ process, on the other hand, produces parts with predictable isotropic mechanical properties. These printed parts are solid on the inside like injection-molded parts and behave consistently in all directions. The resolution and gentleness of our process—where parts aren’t harshly repositioned with every slice—make it possible to leverage a broad range of materials that meet the surface finish and detail requirements needed for end-use parts.

The Carbon Isotropic Difference

Carbon’s isotropic properties are a feature of our dual-cure materials technology. Each stage in the process contributes to the mechanical integrity of every printed part.

Stage 01: Print

The isotropic difference of parts printed on the Carbon platform is due in part to the dead zone. In this small region, a thin layer of oxygen prohibits curing closest to the window with its effect falling off to zero at ~20 µm from the surface of the window.

Liquid resin begins to intersect and cure along the z-axis as light escapes the oxygen layer of the dead zone.

Stage 02: Bake

The isotropy of each printed part is reinforced with a thermal curing stage. Here, a secondary reaction creates a molecular weaving, adding strength in all directions.

Fully Dense Parts with End-Use Quality

Unlike powder-bed fusion 3D printing technologies, Carbon technology produces fully dense parts.

Powder-Bed Fusion
Carbon DLS™

Why the Carbon DLS™ Process?

Accelerate Every Step of Product Development

Rapid Design Iterations

Test dozens of designs in the time it used to take to try one.

Functional and Rapid Prototyping

Don’t settle for fragile prototypes. Bring your designs to life with the industry’s best materials, then start testing and iterating immediately.

Scale to Production

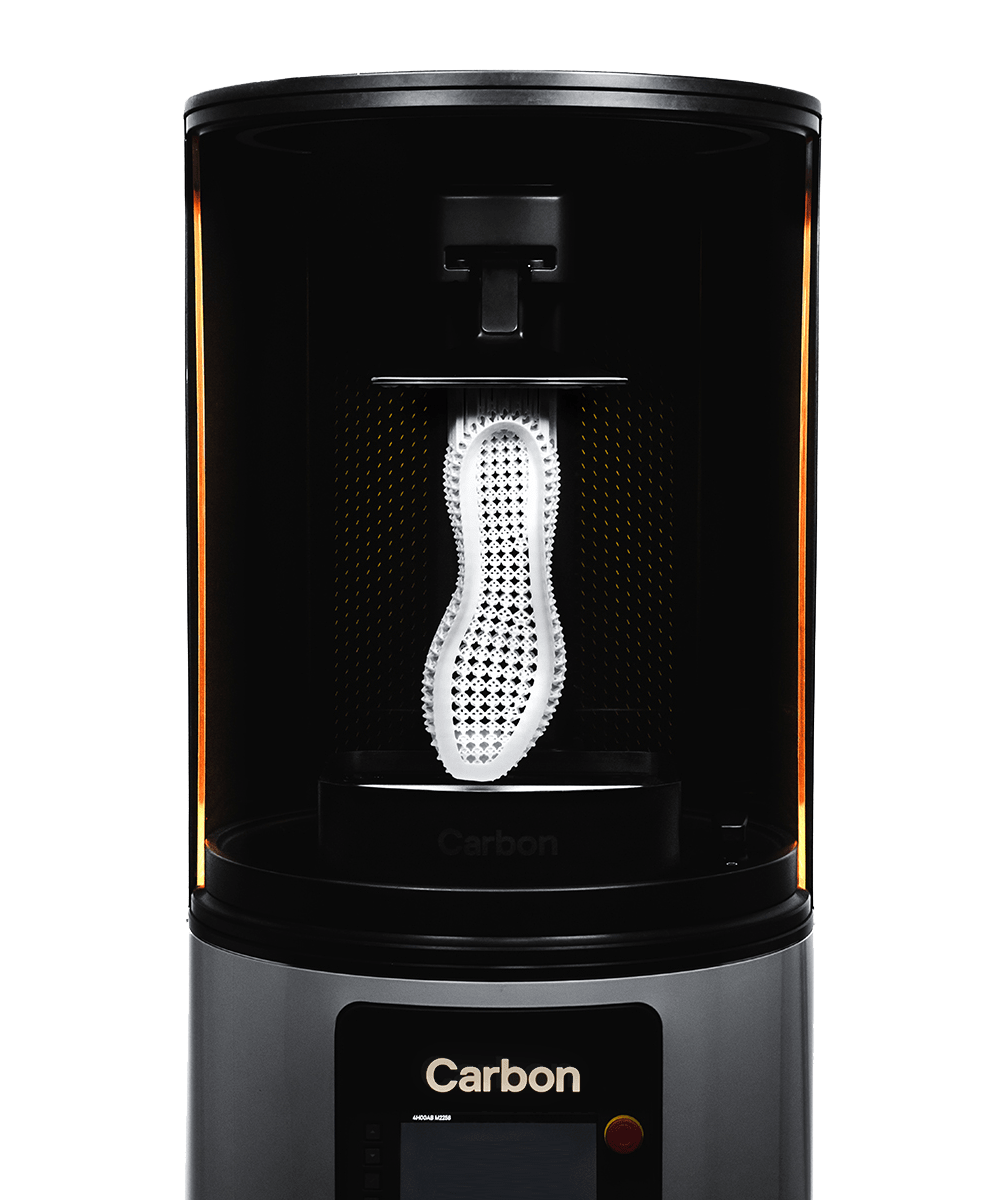

Seamlessly transition into production, while still having the ability to revise your designs immediately and without retooling. Scaling has already been done by leading brands like adidas, Specialized, and fizik.

Find the Perfect Design for Your Application, Not the Mold

Undercuts and Undrafted Walls

Moldability constraints don’t apply here. Enjoy the freedom of designing with undercuts and perfectly straight walls without sacrificing manufacturability.

Performance-oriented Lattices

Lattices allow you to specify your required characteristics at every millimeter. Determine your product’s ideal mechanical response and leverage Carbon Design Engine™ software to generate the right lattice for it.

Consolidated Parts

A single printed part frequently offers better overall mechanical performance than an assembled part. Streamline production with reduced SKUs and less labor by consolidating assemblies.

Discover New Aesthetics

Customization

With no tooling costs, you’re free to make every unit unique. Offer personalized designs, or build entire products around individuals.

Surface Design and Textures

Enhance your parts by applying textures to complex curved surfaces like grips and enclosures with Carbon design software.
